tgCPGCableControl Class Reference
Inheritance diagram for tgCPGCableControl:
Inheritance graph
[legend]

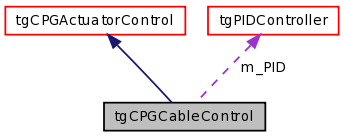

Collaboration diagram for tgCPGCableControl:
Collaboration graph
[legend]

Public Member Functions

 tgCPGCableControl (const tgPIDController::Config pid_config, const double controlStep=1.0/10000.0)

virtual void onSetup (tgSpringCableActuator &subject)

virtual void onStep (tgSpringCableActuator &subject, double dt)

void assignNodeNumberFB (CPGEquationsFB &CPGSys, array_2D nodeParams)

virtual void onAttach (tgSpringCableActuator &subject)

void assignNodeNumber (CPGEquations &CPGSys, array_2D nodeParams)

void setConnectivity (const std::vector< tgCPGActuatorControl * > &allStrings, array_4D edgeParams)

const int getNodeNumber () const

const CPGEquations * getCPGSys () const

const double getCommandedTension () const

virtual void setupControl (tgImpedanceController &ipc)

void setupControl (tgImpedanceController &ipc, double controlLength)

const btRigidBody * getFromBody () const

const btRigidBody * getToBody () const

virtual void onTeardown (tgSpringCableActuator &subject)

virtual double getCPGValue () const


Protected Member Functions

tgImpedanceController & motorControl () const

double controlLength () const


Protected Attributes

const tgPIDController::Config m_config

tgPIDController * m_PID

double m_controlTime

const double m_controlStep

double m_totalTime

double m_commandedTension

btRigidBody * m_pFromBody

btRigidBody * m_pToBody

CPGEquations * m_pCPGSystem

int m_nodeNumber

double m_controlLength


Detailed Description

Definition at line 28 of file tgCPGCableControl.h.

Member Function Documentation

void tgCPGActuatorControl::assignNodeNumber ( CPGEquations &  CPGSys,
array_2D  nodeParams
)
inherited

Can call these any time, but they'll only have the intended effect after all of the strings have been constructed.

Definition at line 102 of file tgCPGActuatorControl.cpp.

void tgCPGCableControl::assignNodeNumberFB ( CPGEquationsFB &  CPGSys,
array_2D  nodeParams
)

Account for the larger number of parameters the nodes have with a feedback CPGSystem

Definition at line 76 of file tgCPGCableControl.cpp.

const CPGEquations* tgCPGActuatorControl::getCPGSys ( ) const
inlineinherited

Pointer to the CPG system. Owned by the higher level controller

Definition at line 79 of file tgCPGActuatorControl.h.

Here is the caller graph for this function:

void tgCPGActuatorControl::onAttach ( tgSpringCableActuator &  subject)
virtualinherited

Notify the observers when an attach action has occurred. Will only occur once, typically before setup

Parameters
[in,out]subjectthe subject being observed

Reimplemented from tgObserver< tgSpringCableActuator >.

Definition at line 64 of file tgCPGActuatorControl.cpp.

void tgCPGCableControl::onSetup ( tgSpringCableActuator &  subject)
virtual

Notify the observers when a setup action has occurred.

Parameters
[in,out]subjectthe subject being observed

Reimplemented from tgObserver< tgSpringCableActuator >.

Definition at line 50 of file tgCPGCableControl.cpp.

void tgCPGCableControl::onStep ( tgSpringCableActuator &  subject,
double  dt
)
virtual

Notify the observers when a step action has occurred.

Parameters
[in,out]subjectthe subject being observed
[in]thenumber of seconds since the previous call; must be positive

Reimplemented from tgCPGActuatorControl.

Definition at line 55 of file tgCPGCableControl.cpp.

Here is the call graph for this function:

virtual void tgObserver< tgSpringCableActuator >::onTeardown ( tgSpringCableActuator &  subject)
inlinevirtualinherited

Notify the observers when a teardown action has occurred.

Parameters
[in,out]subjectthe subject being observed

Definition at line 67 of file tgObserver.h.

void tgCPGActuatorControl::setConnectivity ( const std::vector< tgCPGActuatorControl * > &  allStrings,
array_4D  edgeParams
)
inherited

Iterate through all other tgSpringCableActuatorCPGInfos, and determine CPG network by rigid body connectivity

Definition at line 122 of file tgCPGActuatorControl.cpp.

Here is the call graph for this function:

Member Data Documentation

const double tgCPGActuatorControl::m_controlStep
protectedinherited

How often this controller updates. Must be non-negative. Zero means it updates every timestep. Units are seconds

Definition at line 114 of file tgCPGActuatorControl.h.

double tgCPGActuatorControl::m_controlTime
protectedinherited

Member variable for keeping track of how long its been since the last update step

Definition at line 109 of file tgCPGActuatorControl.h.

The documentation for this class was generated from the following files:
