#include <T6SphereModel.h>

Inheritance diagram for T6SphereModel:

Collaboration diagram for T6SphereModel:

Public Member Functions
	T6SphereModel ()

virtual	~T6SphereModel ()

virtual void	setup (tgWorld &world)

void	teardown ()

virtual void	step (double dt)

virtual void	onVisit (tgModelVisitor &r)

const std::vector < tgSpringCableActuator * > &	getAllMuscles () const

void	attach (tgObserver< T6SphereModel > *pObserver)

void	notifyStep (double dt)

void	notifySetup ()

void	notifyTeardown ()

virtual void	onVisit (const tgModelVisitor &r) const

void	addChild (tgModel *pChild)

virtual std::string	toString (std::string prefix="") const

template<typename T >
std::vector< T * >	find (const tgTagSearch &tagSearch)

template<typename T >
std::vector< T * >	find (const std::string &tagSearch)

std::vector< tgModel * >	getDescendants () const

const std::vector < abstractMarker > &	getMarkers () const

void	addMarker (abstractMarker a)

void	addTags (const std::string &space_separated_tags)

void	addTags (const tgTags &tags)

bool	hasTag (const std::string tag) const

bool	hasAllTags (std::string tags)

bool	hasAnyTags (const std::string tags)

bool	hasNoTags ()

tgTags &	getTags ()

const tgTags &	getTags () const

void	setTags (tgTags tags)

std::string	getTagStr (std::string delim=" ") const

Detailed Description

Class that creates the six strut "superball" model using tgcreator

Definition at line 43 of file T6SphereModel.h.

Constructor & Destructor Documentation

T6SphereModel::T6SphereModel ( )

The only constructor. Utilizes default constructor of tgModel Configuration parameters are within the .cpp file in this case, not passed in.

Definition at line 99 of file T6SphereModel.cpp.

T6SphereModel::~T6SphereModel ( )

virtual

Destructor. Deletes controllers, if any were added during setup. Teardown handles everything else.

Definition at line 103 of file T6SphereModel.cpp.

Member Function Documentation

void tgModel::addChild ( tgModel * pChild )

inherited

Add a sub-model to this model. The model takes ownership of the child sub-model and is responsible for deallocating it.

Parameters

[in,out] pChild a pointer to a sub-model

Exceptions

std::invalid_argument is pChild is NULL, this object, or already a descendant

Todo:: Make sure that every child appears no more than once in the tree.

Definition at line 124 of file tgModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void tgSubject< T6SphereModel >::attach ( tgObserver< T6SphereModel > * pObserver )

inherited

Attach an observer to the subject of the observer.

Parameters

[in,out] pObserver a pointer to an observer for the subject; do nothing if the pointer is NULL

template<typename T >

std::vector<T*> tgModel::find ( const tgTagSearch & tagSearch )

inlineinherited

Get a vector of descendants sorted by type and a tagsearch. Useful for pulling out muscle groups, or similar.

Parameters

[in] tagSearch,a tagSearch that contains the desired tags

Returns: a std::vector of pointers to members that match the tag search and typename T

Definition at line 125 of file tgModel.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T >

std::vector<T*> tgModel::find ( const std::string & tagSearch )

inlineinherited

Get a vector of descendants sorted by type and a tagsearch. Useful for pulling out muscle groups, or similar.

Parameters

[in] tagSearch,a std::string& that contains the desired tags

Returns: a std::vector of pointers to members that match the tag search and typename T

Definition at line 138 of file tgModel.h.

Here is the call graph for this function:

const std::vector< tgSpringCableActuator * > & T6SphereModel::getAllMuscles ( ) const

Return a vector of all muscles for the controllers to work with.

Returns: A vector of all of the muscles

Definition at line 245 of file T6SphereModel.cpp.

std::vector< tgModel * > tgModel::getDescendants ( ) const

inherited

Return a std::vector of const pointers to all sub-models.

Todo:

examine whether this should be public, and perhaps create a read only version

Returns: a std::vector of const pointers all sub-models.

Todo:: Unnecessary copying can be avoided by pasing the result collection in the recursive step.

Definition at line 172 of file tgModel.cpp.

Here is the call graph for this function:

void tgSubject< T6SphereModel >::notifySetup ( )

inherited

Call tgObserver<T>::onSetup() on all observers in the order in which they were attached.

Here is the caller graph for this function:

void tgSubject< T6SphereModel >::notifyStep ( double dt )

inherited

Call tgObserver<T>::onStep() on all observers in the order in which they were attached.

Parameters

[in] dt the number of seconds since the previous call; do nothing if not positive

Here is the caller graph for this function:

void tgSubject< T6SphereModel >::notifyTeardown ( )

inherited

Call tgObserver<T>::onTeardown() on all observers in the order in which they were attached.

void T6SphereModel::onVisit ( tgModelVisitor & r )

virtual

Receives a tgModelVisitor and dispatches itself into the visitor's "render" function. This model will go to the default tgModel function, which does nothing.

Parameters

[in] r - a tgModelVisitor which will pass this model back to itself

Definition at line 240 of file T6SphereModel.cpp.

Here is the call graph for this function:

void tgModel::onVisit ( const tgModelVisitor & r ) const

virtualinherited

Call tgModelVisitor::render() on self and all descendants.

Parameters

[in,out] r a reference to a tgModelVisitor

Reimplemented in ConnectorTestModel, BuildTestModel, tgKinematicActuator, tgSphere, tgBox, tgRod, MuscleNPCons, tgBasicActuator, hillyMuscleNP, simpleMuscleNP, tgBaseRigid, and tgGhostModel.

Definition at line 107 of file tgModel.cpp.

Here is the call graph for this function:

void T6SphereModel::setup ( tgWorld & world )

virtual

Create the model. Place the rods and strings into the world that is passed into the simulation. This is triggered automatically when the model is added to the simulation, when tgModel::setup(world) is called (if this model is a child), and when reset is called. Also notifies controllers of setup.

Parameters

[in] world - the world we're building into

Reimplemented from tgModel.

Definition at line 172 of file T6SphereModel.cpp.

void T6SphereModel::step ( double dt )

virtual

Step the model, its children. Notifies controllers of step.

Parameters

[in] dt,the timestep. Must be positive.

Reimplemented from tgModel.

Definition at line 225 of file T6SphereModel.cpp.

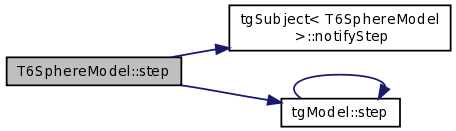

Here is the call graph for this function:

void T6SphereModel::teardown ( )

virtual

Undoes setup. Deletes child models. Called automatically on reset and end of simulation. Notifies controllers of teardown

Reimplemented from tgModel.

Definition at line 250 of file T6SphereModel.cpp.

Here is the call graph for this function:

std::string tgModel::toString ( std::string prefix = "" ) const

virtualinherited

Returns the tag names of this model and its children

Parameters

[in] prefix a string to append to

Returns: the original string with this model and its children's tags appended

Definition at line 154 of file tgModel.cpp.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

dev/btietz/sphereFeet/T6SphereModel.h
dev/btietz/sphereFeet/T6SphereModel.cpp
