Inheritance diagram for tgBasicActuator:

Collaboration diagram for tgBasicActuator:

Public Member Functions
	tgBasicActuator (tgBulletSpringCable *muscle, const tgTags &tags, tgSpringCableActuator::Config &config)

virtual	~tgBasicActuator ()

virtual void	setup (tgWorld &world)

virtual void	teardown ()

virtual void	step (double dt)

virtual void	onVisit (const tgModelVisitor &r) const

virtual void	setControlInput (double input)

virtual void	setControlInput (double input, double dt)

virtual void	moveMotors (double dt)

virtual const double	getStartLength () const

virtual const double	getCurrentLength () const

virtual const double	getTension () const

virtual const double	getRestLength () const

virtual const double	getVelocity () const

virtual const tgSpringCableActuator::SpringCableActuatorHistory &	getHistory () const

const tgSpringCable *	getSpringCable () const

const Config &	getConfig () const

void	addChild (tgModel *pChild)

virtual std::string	toString (std::string prefix="") const

template<typename T >
std::vector< T * >	find (const tgTagSearch &tagSearch)

template<typename T >
std::vector< T * >	find (const std::string &tagSearch)

std::vector< tgModel * >	getDescendants () const

const std::vector < abstractMarker > &	getMarkers () const

void	addMarker (abstractMarker a)

void	addTags (const std::string &space_separated_tags)

void	addTags (const tgTags &tags)

bool	hasTag (const std::string tag) const

bool	hasAllTags (std::string tags)

bool	hasAnyTags (const std::string tags)

bool	hasNoTags ()

tgTags &	getTags ()

const tgTags &	getTags () const

void	setTags (tgTags tags)

std::string	getTagStr (std::string delim=" ") const

void	attach (tgObserver< tgSpringCableActuator > *pObserver)

void	notifyStep (double dt)

void	notifySetup ()

void	notifyTeardown ()

Protected Attributes
tgSpringCable *	m_springCable

Config	m_config

SpringCableActuatorHistory *const	m_pHistory

double	m_restLength

double	m_startLength

double	m_prevVelocity

Detailed Description

Definition at line 40 of file tgBasicActuator.h.

Constructor & Destructor Documentation

tgBasicActuator::tgBasicActuator	(	tgBulletSpringCable *	muscle,
		const tgTags &	tags,
		tgSpringCableActuator::Config &	config
	)

Constructor using tags. Typically called in tgBasicActuatorInfo.cpp

Parameters

[in]	muscle	The muscle2P object that this controls and logs. Set up in tgBasicActuatorInfo.cpp
[in]	tags	as passed through tgStructure and tgStructureInfo
[in]	config	Holds member variables like elasticity, damping and motor parameters. See tgSpringCableActuator

Definition at line 64 of file tgBasicActuator.cpp.

tgBasicActuator::~tgBasicActuator ( )

virtual

Destructor deletes the tgBulletSpringCable

Definition at line 77 of file tgBasicActuator.cpp.

Member Function Documentation

void tgModel::addChild ( tgModel * pChild )

inherited

Add a sub-model to this model. The model takes ownership of the child sub-model and is responsible for deallocating it.

Parameters

[in,out] pChild a pointer to a sub-model

Exceptions

std::invalid_argument is pChild is NULL, this object, or already a descendant

Todo:: Make sure that every child appears no more than once in the tree.

Definition at line 124 of file tgModel.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void tgSubject< tgSpringCableActuator >::attach ( tgObserver< tgSpringCableActuator > * pObserver )

inherited

Attach an observer to the subject of the observer.

Parameters

[in,out] pObserver a pointer to an observer for the subject; do nothing if the pointer is NULL

template<typename T >

std::vector<T*> tgModel::find ( const tgTagSearch & tagSearch )

inlineinherited

Get a vector of descendants sorted by type and a tagsearch. Useful for pulling out muscle groups, or similar.

Parameters

[in] tagSearch,a tagSearch that contains the desired tags

Returns: a std::vector of pointers to members that match the tag search and typename T

Definition at line 125 of file tgModel.h.

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T >

std::vector<T*> tgModel::find ( const std::string & tagSearch )

inlineinherited

Get a vector of descendants sorted by type and a tagsearch. Useful for pulling out muscle groups, or similar.

Parameters

[in] tagSearch,a std::string& that contains the desired tags

Returns: a std::vector of pointers to members that match the tag search and typename T

Definition at line 138 of file tgModel.h.

Here is the call graph for this function:

const Config& tgSpringCableActuator::getConfig ( ) const

inlineinherited

Return a const reference to m_config for scaling values in neural networks

Definition at line 236 of file tgSpringCableActuator.h.

const double tgSpringCableActuator::getCurrentLength ( ) const

virtualinherited

Returns the current length of the spring cable

Definition at line 163 of file tgSpringCableActuator.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

std::vector< tgModel * > tgModel::getDescendants ( ) const

inherited

Return a std::vector of const pointers to all sub-models.

Todo:

examine whether this should be public, and perhaps create a read only version

Returns: a std::vector of const pointers all sub-models.

Todo:: Unnecessary copying can be avoided by pasing the result collection in the recursive step.

Definition at line 172 of file tgModel.cpp.

Here is the call graph for this function:

const tgSpringCableActuator::SpringCableActuatorHistory & tgSpringCableActuator::getHistory ( ) const

virtualinherited

Return a const reference to the history struct

Reimplemented in tgKinematicActuator.

Definition at line 183 of file tgSpringCableActuator.cpp.

Here is the caller graph for this function:

const double tgSpringCableActuator::getRestLength ( ) const

virtualinherited

Returns the rest length of the spring-cable

Definition at line 173 of file tgSpringCableActuator.cpp.

Here is the call graph for this function:

const tgSpringCable* tgSpringCableActuator::getSpringCable ( ) const

inlineinherited

Returns a pointer the string's tgBulletSpringCable. Used for rendering in tgBulletRenderer

Definition at line 227 of file tgSpringCableActuator.h.

const double tgSpringCableActuator::getStartLength ( ) const

virtualinherited

Functions for interfacing with tgSpringCable Returns the length of the spring cable when the simulation started

Definition at line 158 of file tgSpringCableActuator.cpp.

Here is the caller graph for this function:

const double tgSpringCableActuator::getTension ( ) const

virtualinherited

Returns the current tension in the spring. Equal to stiffness * (current length - rest length)

Definition at line 168 of file tgSpringCableActuator.cpp.

Here is the call graph for this function:

const double tgSpringCableActuator::getVelocity ( ) const

virtualinherited

In the default implementation returns the change in actual length / time of the spring cable. Some child classes return the actuator velocity

Reimplemented in tgKinematicActuator.

Definition at line 178 of file tgSpringCableActuator.cpp.

Here is the call graph for this function:

void tgBasicActuator::moveMotors ( double dt )

virtual

Called from public functions, it makes the restLength get closer to preferredlength, according to config constraints.

Parameters

[in] dt,time elapsed since last call.

Definition at line 170 of file tgBasicActuator.cpp.

void tgSubject< tgSpringCableActuator >::notifySetup ( )

inherited

Call tgObserver<T>::onSetup() on all observers in the order in which they were attached.

Here is the caller graph for this function:

void tgSubject< tgSpringCableActuator >::notifyStep ( double dt )

inherited

Call tgObserver<T>::onStep() on all observers in the order in which they were attached.

Parameters

[in] dt the number of seconds since the previous call; do nothing if not positive

Here is the caller graph for this function:

void tgSubject< tgSpringCableActuator >::notifyTeardown ( )

inherited

Call tgObserver<T>::onTeardown() on all observers in the order in which they were attached.

void tgBasicActuator::onVisit ( const tgModelVisitor & r ) const

virtual

Double dispatch function for a tgModelVisitor. This object will pass itself back to the visitor. Used for rendering and data logging as of May 2014.

Parameters

[in] r,the visiting tgModelVisitor

Reimplemented from tgModel.

Definition at line 115 of file tgBasicActuator.cpp.

Here is the call graph for this function:

void tgBasicActuator::setControlInput ( double input )

virtual

Functions for interfacing with higher level controllers Directly set m_preferredLength (see base class tgSpringCableActuator) Does not call moveMotors.

Parameters

[in] input,the control input for the current step

Implements tgControllable.

Definition at line 137 of file tgBasicActuator.cpp.

void tgBasicActuator::setControlInput	(	double	input,
		double	dt
	)

virtual

Directly set m_preferredLength (see base class tgSpringCableActuator) Calls moveMotors(dt) to adjust the rest length of tgBulletSpringCable

Parameters

[in]	input,the	control input for the current step
[in]	dt,time	elapsed since last call.

Reimplemented from tgControllable.

Definition at line 149 of file tgBasicActuator.cpp.

Here is the call graph for this function:

void tgBasicActuator::setup ( tgWorld & world )

virtual

Notifies observers of setup, calls setup on children

Parameters

[in] world,the tgWorld the models are being built into

Reimplemented from tgSpringCableActuator.

Definition at line 83 of file tgBasicActuator.cpp.

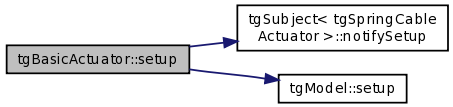

Here is the call graph for this function:

void tgBasicActuator::step ( double dt )

virtual

Step dt forward with the simulation. Notifies observers of step, applies forces to rigid bodies via tgBulletSpringCable, logs history if desired, steps children.

Parameters

[in] dt,must be >= 0.0

Reimplemented from tgSpringCableActuator.

Definition at line 96 of file tgBasicActuator.cpp.

void tgBasicActuator::teardown ( )

virtual

Notifies observers of teardown, teardown any children

Reimplemented from tgSpringCableActuator.

Definition at line 90 of file tgBasicActuator.cpp.

Here is the call graph for this function:

std::string tgModel::toString ( std::string prefix = "" ) const

virtualinherited

Returns the tag names of this model and its children

Parameters

[in] prefix a string to append to

Returns: the original string with this model and its children's tags appended

Definition at line 154 of file tgModel.cpp.

Here is the caller graph for this function:

Member Data Documentation

Config tgSpringCableActuator::m_config

protectedinherited

A copy of the configuration POD supplied at constuction. This is not const.

Definition at line 259 of file tgSpringCableActuator.h.

SpringCableActuatorHistory* const tgSpringCableActuator::m_pHistory

protectedinherited

All history sequences.

Definition at line 262 of file tgSpringCableActuator.h.

double tgSpringCableActuator::m_prevVelocity

protectedinherited

Tracking the most recent velocity to avoid using deques when history is off.

Definition at line 287 of file tgSpringCableActuator.h.

double tgSpringCableActuator::m_restLength

protectedinherited

Motor Model Parameters The current rest length of the spring cable. Directly sets the m_restLength parameter of m_springCable in the appropreate child class functions

Definition at line 274 of file tgSpringCableActuator.h.

tgSpringCable* tgSpringCableActuator::m_springCable

protectedinherited

The tgSpringCable system this actuator acts upon

Definition at line 253 of file tgSpringCableActuator.h.

double tgSpringCableActuator::m_startLength

protectedinherited

Tracking the start length to avoid using deques when history is off.

Definition at line 281 of file tgSpringCableActuator.h.

The documentation for this class was generated from the following files:

core/tgBasicActuator.h
core/tgBasicActuator.cpp
