tgSimulation Class Reference

#include <tgSimulation.h>

Public Member Functions
	tgSimulation (tgSimView &view)
void	step (double dt) const
void	run () const
void	run (int steps) const
void	addModel (tgModel *pModel)
void	onVisit (const tgModelVisitor &r) const
void	reset ()
tgWorld &	getWorld () const

Detailed Description

Holds objects necessary for simulation, a world, a view and a list of models.

Definition at line 43 of file tgSimulation.h.

Constructor & Destructor Documentation

tgSimulation::tgSimulation

(

tgSimView &

view

)

The only constructor.

Parameters

[in,out]

view

the way the world and its models are rendered.

Definition at line 39 of file tgSimulation.cpp.

Here is the call graph for this function:

Member Function Documentation

void tgSimulation::addModel

(

tgModel *

pModel

)

Add a Tensegrity to the simulation.

Parameters

[in]

pModel

a pointer to a tgModel representing a Tensegrity; an exception is thrown if it is NULL

Exceptions

std::invalid_argument

if pModel is NULL

Definition at line 60 of file tgSimulation.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

tgWorld & tgSimulation::getWorld

(

)

const

Returns a reference to the world

Note

This is not inlined because it depends on the definition of tgSimView.

Definition at line 107 of file tgSimulation.cpp.

Here is the call graph for this function:

void tgSimulation::onVisit

(

const tgModelVisitor &

r

)

const

Pass the tgModelVisitor to all of the models

Definition at line 79 of file tgSimulation.cpp.

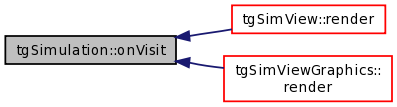

Here is the caller graph for this function:

void tgSimulation::reset

(

)

Calls teardown, then calls setup on the view, finally calls setup on the models Will delete and remake the dynamics world

Definition at line 91 of file tgSimulation.cpp.

Here is the call graph for this function:

void tgSimulation::run

(

)

const

Run until stopped by user. Calls tgSimView.run()

Definition at line 151 of file tgSimulation.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

void tgSimulation::run

(

int

steps

)

const

Run for a specific number of steps. Calls tgSimView.run(int steps)

Parameters

[in]

steps

the number of steps to update the graphics

Todo:

Make steps of type size_t.

Definition at line 156 of file tgSimulation.cpp.

Here is the call graph for this function:

void tgSimulation::step

(

double

dt

)

const

Advance the simulation.

Parameters

[in]

dt

the number of seconds since the previous call; throw an exception if not positive

Exceptions

std::invalid_argument

if dt is not positive

Definition at line 112 of file tgSimulation.cpp.

Here is the call graph for this function:

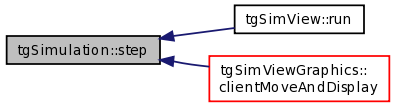

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• core/tgSimulation.h
• core/tgSimulation.cpp
